Ceramic Antenna PCB Prototype Manufacturing Process


  • Brand Name: KingSong/Customized
  • Min.Order Quantity: No
  • Supply Ability: 30~50 thousand ㎡/Month
  • Port: Shenzhen
  • Service: EMS/OEM/ODM
  • Payment Terms: T/T,Paypal,WU etc.
  • Layer: 1
  • Base Material: 96% Alumina
  • Board Thickness: 1.0mm
  • Silkscreen Color: black
  • Surface Finish: Immersion silver
  • Describe

    Welcome to KingSong PCB Technology

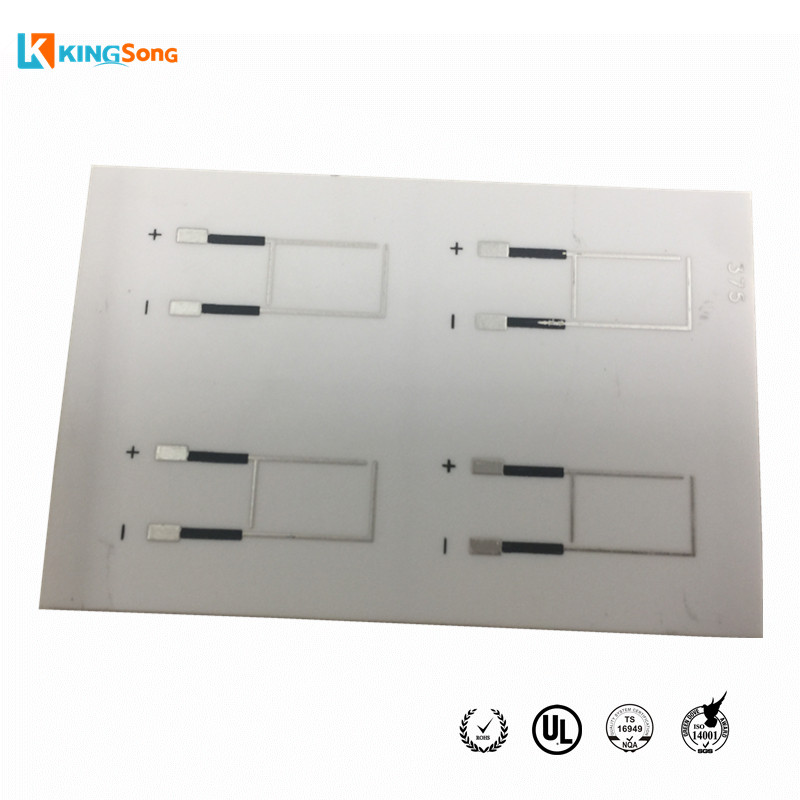

    Image:Ceramic Antenna PCB Prototype Manufacturing Process

    Ceramic Antenna vs PCB

    1.Ceramic PCB Board Capabilities:
    Layer:1,2
    Material:96% Alumina,99% Aluminium nitride(AIN),Sapphire,High Borosilicate Glass
    Material Thickness(mm):0.38,0.635,0.5,1.0,1.2,1.5
    Material Size(mm):120*120,127*127,132*132,140*130,190*140
    Min Hole:0.075mm
    Min Line width/space:0.1/0.1mm
    Laser Outline: line width:0.1mm,tolerance:+/-0.1mm
    Surface Finish:Immersion Silver,Immersion Gold,Immersion Tin,OSP
    Copper Thickness(oz):H/H  1/1  2/2  3/3  4/4  5/5  6/6  7/7  8/8  9/9  10/10
    Thermal conductivity value:  20~27W/m.K for Alumina; 180W~220W/m.K for Aluminium nitride , 27~30W/m.K for Sapphire,2 ~ 5 W/m.K for High Borosilicate Glass

    Product Description:
    Ceramic Antenna PCB Prototype is a high thermal conductivity substrate composed of high-conductivity dielectric Ceramic Antenna PCB Prototype composed of noble metal and high thermal conductivity insulating material,Can effectively solve the problem of low thermal conductivity PCB and aluminum substrate. To effectively heat the heat generated by high-temperature electronic components, increase component stability and extend the service life.

    Ceramic PCB Features:
    Do not need to change the original processing procedures
    Excellent mechanical strength
    With good thermal conductivity
    With resistance to erosion
    Good surface characteristics, excellent flatness and flatness
    Good thermal shock resistance
    Low curl degree
    Good stability under high temperature can be processed into a variety of complex shapes

    Ceramic PCB Application:
    high-accuracy clock oscillator,
    voltage controlled oscillator (VCXO),
    temperature compensated crystal oscillators (TCXOs),
    oven controlled crystal oscillators (OCXOs);
    emiconductor cooler;
    electric power electronic control module;
    high insulation & high pressure device;
    high temperature (up to 800C)
    high power LED
    High Power semiconductor modules
    solid state relay (SSR)
    DC-DC module power sources
    electric power transmitter modules
    Solar-panel arrays

    Intelligent power devices
    Automotive electronics
    High power semiconductor module
    Solar panel components
    Lighting industry
    Aerospace
    Communications
    The power electronics industry

    2.Delivery time:
    Sample:3-5 or 12-15 working days,
    Mass production:5-7 or 12-15 working days

    3.Package:Inner vacuum packing,Outer standard carton box packing.

    4.Shipping:
    A:By DHL,UPS,Fedex,TNT etc.
    B:By sea for mass quantity according to customer’s requirement.

    5.If need quotation for your PCB projects,pls provide following info:
    A:Quote quantity,
    B:Gerber file in 274-x format,
    C:Technical requirement or parameters(material,layer,copper thickness,
    board thickness,surface finishing,solder mask/silkscreen color…)

    If any inquiry or want to learn more,please send email to us freely or chat by online system,thanks for your support in advance!
