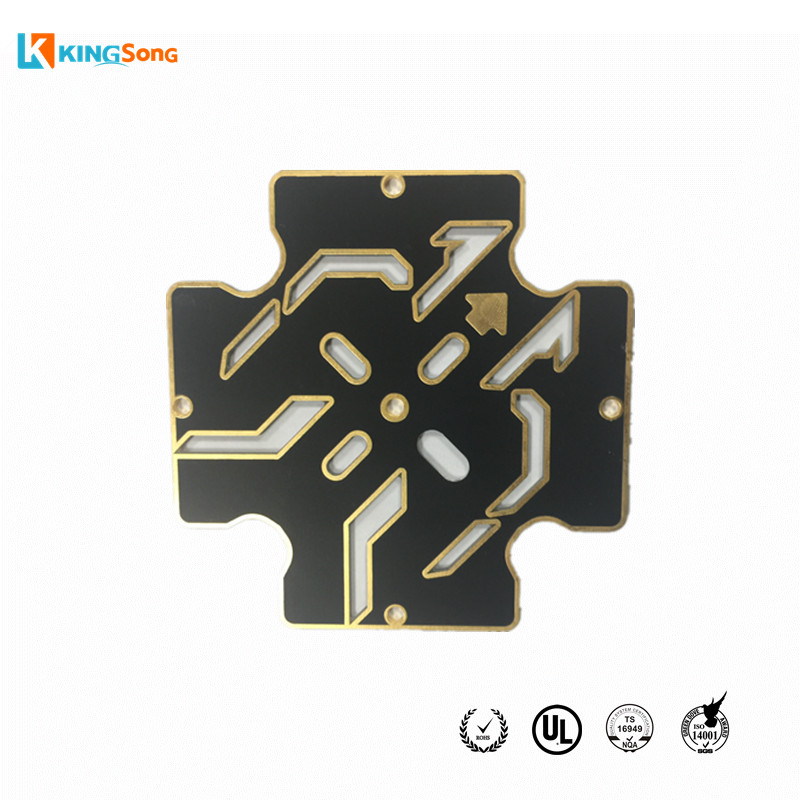

Prototype PCB Manufacturer


  • Brand Name: KingSong/Customized
  • Min.Order Quantity: No
  • Supply Ability: 30~50 thousand ㎡/Month
  • Port: Shenzhen
  • Service: EMS/OEM/ODM
  • Payment Terms: T/T,Paypal,WU etc.
  • Layer: 2
  • Base Material: FR4
  • Copper Thickness: 1oz
  • Board Thickness: 1.2mm
  • Solder Mask Color: Black(can customized)
  • Silkscreen Color: No(can customized)
  • Surface Finishing: Immersion Gold
  • Test Way: 100% E-Test
  • Standard: IPC-Class2/Class 3
  • Describe

    Welcome to KingSong PCB Technology.


    Prototype PCB Manufacturer

    PCB Manufacturer





















    Related Services,such as:Prototype PCB Manufacturing,Prototype PCB Fabrication,Prototype PCB Suppliers etc.

    1.Detail PCB Manufacturing Capabilities:

    No. Item Mass Production Prototype
    1 Layers 1-8 Layers 1-20 Layers
    2 Max. Panel Size 600*770mm( 23.62″*30.31″) 600*770mm(23.62″*30.31″) 500*1200mm(19.69″*47.24″)
    3 Max.Board Thickness 8.5mm 8.5mm
    4 Min. Board Thickness 2L:0.3mm,
    4L:0.4mm,
    6L:0.8mm
    2L:0.2mm,
    4L:0.4mm.
    6L:0.6mm
    5 Min Inner Layer Clearance 0.1mm(4mil) 0.1mm(4mil)
    6 Min Line width 0.1mm(4/4 mil) 0.075mm(3/3 mil)
    7 Min Line space 0.1mm(4/4 mil) 0.075mm(3/3 mil)
    8 Min.Hole Size 0.15mm(8mil) 0.1mm(6mil)
    9 Min plated hole thickness 20um(0.8mil) 20um(0.8mil)
    10 Min Blind/Buried hole size 0.2mm(8mil) 0.2mm(1-8layers)(8mil)
    11 PTH Dia. Tolerance ±0.076mm(±3mil) ±0.076mm(±3mil)
    12 Non PTH Dia. Tolerance ±0.05mm(±2mil) ±0.05mm(±2mil)
    13 Hole Position Deviation ±0.05mm(±2mil) ±0.05mm(±2mil)
    14 Heavy Coppe 4oz/140μm 6oz/175μm
    15 Min S/M Pitch 0.1mm (4mil) 0.1mm (4mil)
    16 Soldermask colour Green,black,Blue,White,Yellow,Red Green,black,Blue,White,Yellow,Red
    17 Silkscreen colour White,Yellow,Red,Black White,Yellow,Red,Black
    18 Outline Routing,V-Groove, Beveling punch Routing,V-Groove, Beveling punch
    19 Outline Tolerance ±0.15mm ±6mil ±0.15mm (±6mil)
    20 Peelable mask Top,bottom,double sided Top,bottom,double sided
    21 Controlled Impedance +/- 10% +/- 7%
    22 Insulation Resistance 1×1012Ω(Normal) 1×1012Ω(Normal)
    23 Through Hole Resistance <300Ω(Normal) <300Ω(Normal)
    24 Thermal Shock 3×10sec@288℃ 3×10sec@288℃
    25 Warp and Twist ≤0.7% ≤0.7%
    26 Electric Strength >1.3KV/mm >1.4KV/mm
    27 Peel Strength 1.4N/mm 1.4N/mm
    28 Solder Mask Abrasion >6H >6H
    29 Flammability 94V-0 94V-0
    30 Test Voltage 50-330V 50-330V

    2.PCB lead time:(if you need urgent service,we also can meet)

    Description Double Layer 4 Layer 6 Layer 8 Layer 10 Layer or above
    Sample(WD) 4 7 8 10 12
    Mass production(WD) 7-9 10-12 13-15 16 20

    3.Package:Inner vacuum packing,Outer standard carton box packing.

    4.Shipping:
    A:By DHL,UPS,Fedex,TNT etc.
    B:By sea for mass quantity according to customer’s requirement.

    5.If need quotation for your PCB projects,pls provide following info:
    A:Quote quantity,
    B:Gerber file in 274-x format,
    C:Technical requirement or parameters(material,layer,copper thickness,
    board thickness,surface finishing,solder mask/silkscreen color…)

    Pls contact us freely to send inquiry,thanks for your support in advance!
