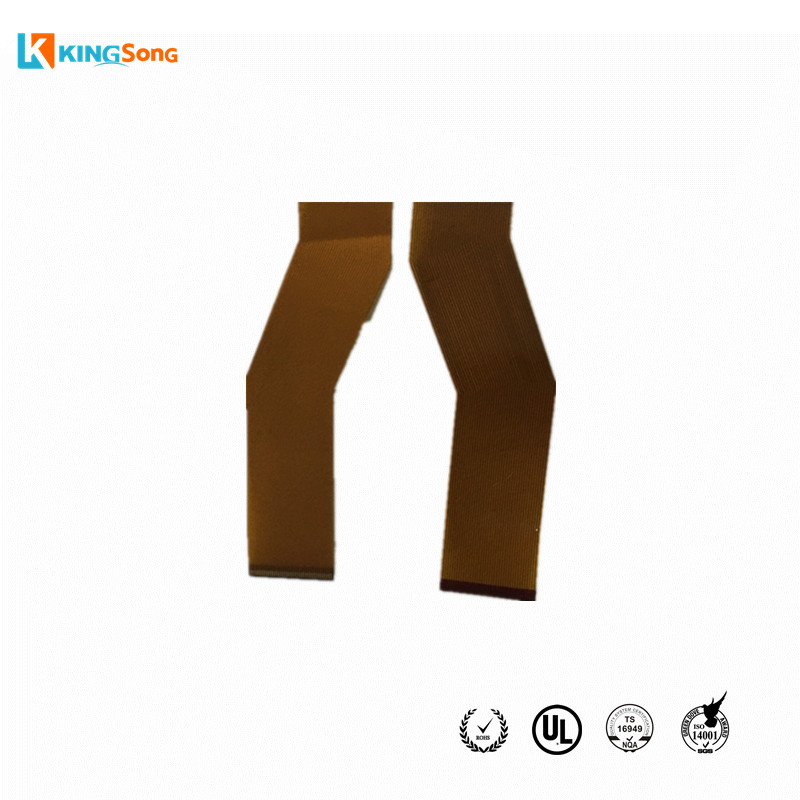

Polyimide Flex Circuit
Related Services,such as:Kapton Flex Circuit Thickness,Polyimide Flexible Printed Circuits,Polyimide Flex Circuit etc.
1.Detail Flex / Rigid-flex PCB Manufacturing Capacities:
| No. |
Item |
Description |
| 1 |
Layer |
Flex board: 1-6Layers
Flex-Rigid Board: 2-8Layers |
| 2 |
Material |
CCL, PI, PET, PEN, FR-4 |
| 3 |
Final Thickness |
Flex board: 0.002″ – 0.1″ (0.05-2.5mm)
Flex-rigid board: 0.0024″ – 0.16″ (0.06-4.0mm) |
| 4 |
Surface Treatment |
Lead-free: ENG Gold; OSP, Immersion silver, Immersion Tin |
| 5 |
Min Trace |
Inner: 0.5oz: 4/4mil Outer: 1/3oz-0.5oz: 4/4mil |
| 6 |
Min Width /Clearance |
1oz: 5/5mil 1oz: 5/5mil
2oz: 5/7mil 2oz: 5/7mil |
| 7 |
Min Hole Ring |
Inner: 0.5oz: 4mil Outer: 1/3oz-0.5oz: 4mil
1oz: 5/5mil 1oz: 5/5mil
2oz: 5/7mil 2oz: 5/7mil |
| 8 |
Copper Thickness |
1/3oz – 2oz |
| 9 |
Max / Min Insulation Thickness |
2mil/0.5mil (50μm/12.7μm) |
| 10 |
Min Hole Size and Tolerance |
Min hole: 8mil
Tolerance: PTH±3mil, NPTH±2mil |
| 11 |
Min Slot |
24mil x 35mil (0.6×0.9mm) |
| 12 |
Solder Mask Alignment Tolerance |
±3mil |
| 13 |
Silkscreen Alignment Tolerance |
±6mil |
| 14 |
Silkscreen Line Width |
5mil |
| 15 |
Gold Plating |
Nickel: 100μ” – 200μ” Gold: 1μ”-5μ” |
| 16 |
Immersion Nickel / Gold |
Nickel: 100μ” – 200μ” Gold: 1μ”-5μ” |
| 17 |
Nickel: 100μ” – 200μ” Gold: 1μ”-5μ” |
Silver: 6μ” – 12μ |
| 18 |
OSP |
Film: 8μ” – 20μ” |
| 19 |
Test Voltage |
Testing Fixture: 50-300V |
| 20 |
Profile Tolerance of Punch |
Accurate mould: ±2mil
Ordinary mould: ±4mil
Knife mould: ±8mil
Hand-Cut: ±15mil |
2.Delivery time:
Flexible pcb:5-7 working days,
Rigid-flex pcb:8-15 working days.
3.Package:Inner vacuum packing,Outer standard carton box packing.
4.Shipping:
A:By DHL,UPS,Fedex,TNT etc.
B:By sea for mass quantity according to customer’s requirement.
5.If need quotation for your PCB projects,pls provide following info:
A:Quote quantity,
B:Gerber file in 274-x format,
C:Technical requirement or parameters(material,layer,copper thickness,
board thickness,surface finishing,solder mask/silkscreen color…)
Pls contact us freely to send inquiry,thanks for your support in advance!
