Diy Flexible Circuit Board


  • Brand Name: KingSong/Customized
  • Min.Order Quantity: No
  • Supply Ability: 30~50 thousand ㎡/Month
  • Port: Shenzhen
  • Service: EMS/OEM/ODM
  • Payment Terms: T/T,Paypal,WU etc.
  • Layer: 2
  • Base Material: Polyimide+FR4 stiffener
  • Copper Thickness: 1oz
  • Board Thickness: 0.3mm
  • Solder mask color: Yellow cover film
  • Silkscreen color: White
  • Surface Finishing: Immersion Gold
  • Test way: 100% E-Test
  • Standard: IPC-Class2/Class 3
  • Describe

    Welcome to KingSong PCB Technology.

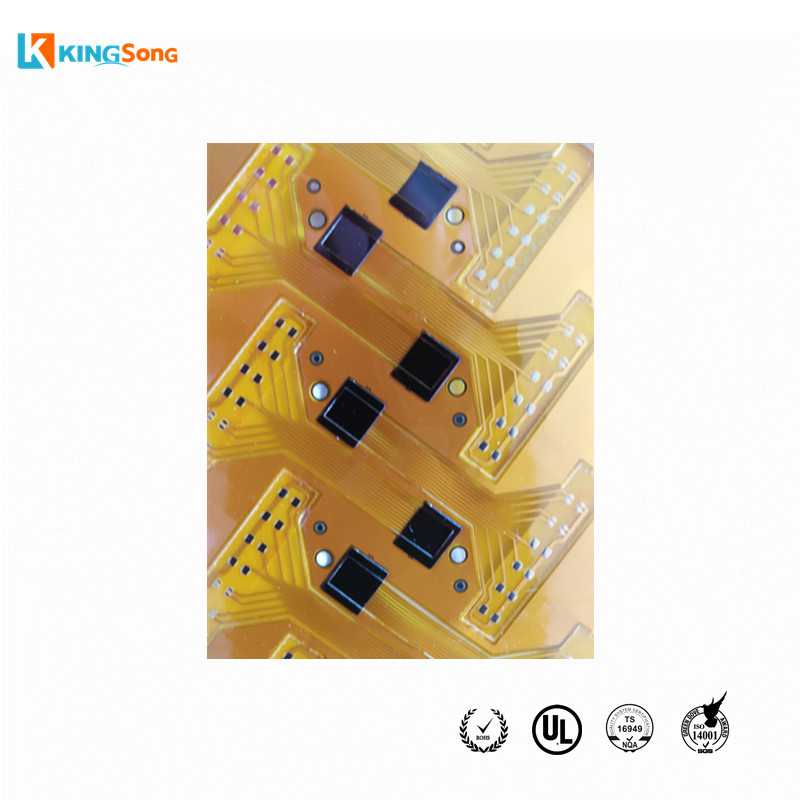

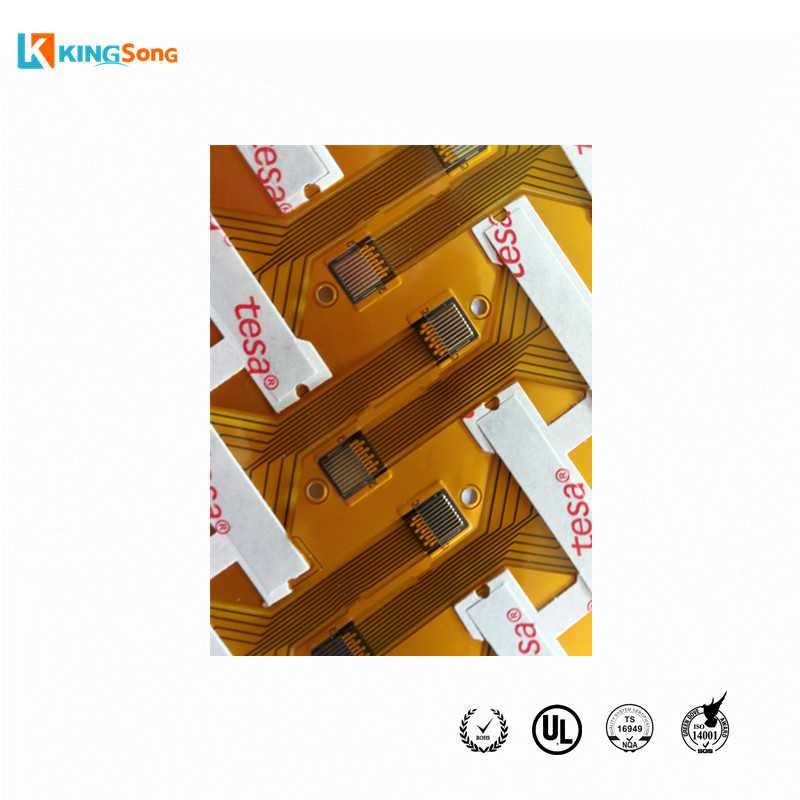

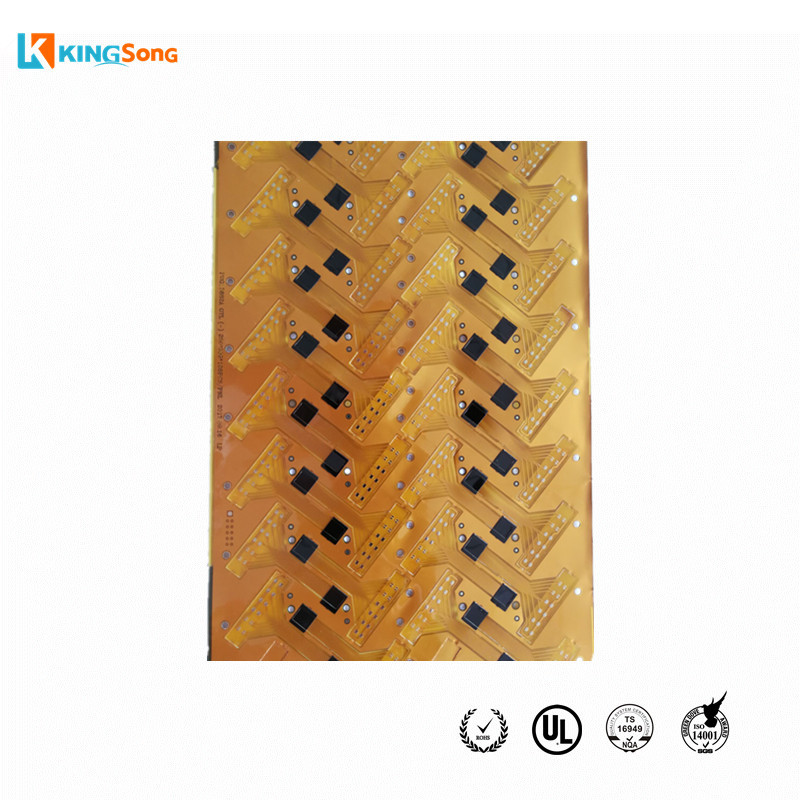

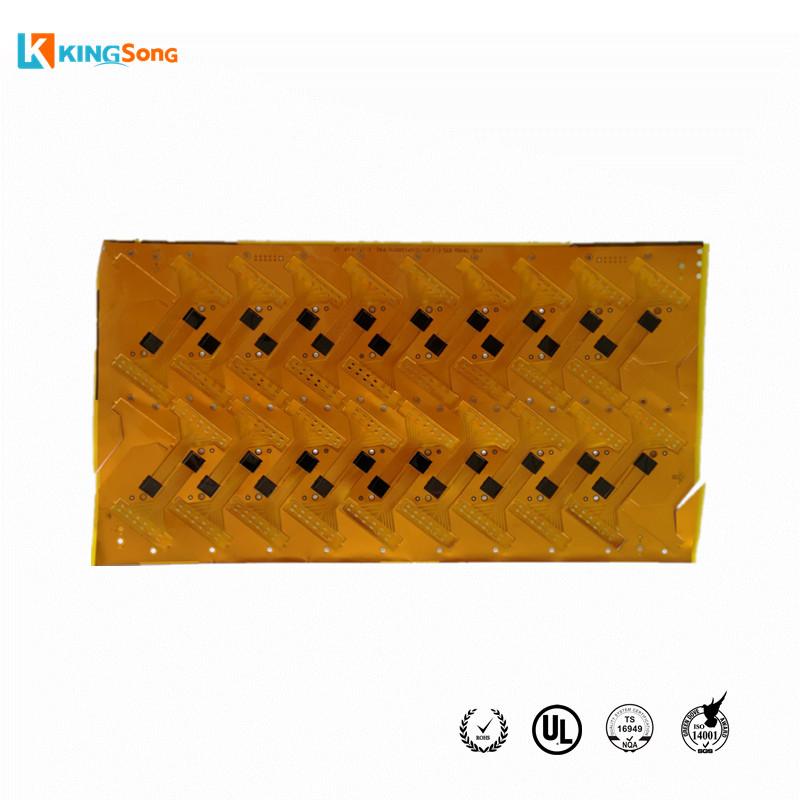

    Diy Flexible Circuit Board

    Diy Flexible Circuit BoardDiy Flexible Printed Circuit BoardFlexible Printed CircuitFlexible Printed Board





















    Related Services,such as:Diy Flexible Printed Circuit Board,Flexible Printed Board,Flexible Printed Circuit,Flexible Printed Circuit Board etc.

    1.Detail Flex / Rigid-flex PCB Manufacturing Capacities:

    No. Item Description
    1 Layer Flex board: 1-6Layers
    Flex-Rigid Board: 2-8Layers
    2 Material CCL, PI, PET, PEN, FR-4
    3 Final Thickness Flex board: 0.002″ – 0.1″ (0.05-2.5mm)
    Flex-rigid board: 0.0024″ – 0.16″ (0.06-4.0mm)
    4 Surface Treatment Lead-free: ENG Gold; OSP, Immersion silver, Immersion Tin
    5 Min Trace Inner: 0.5oz: 4/4mil  Outer: 1/3oz-0.5oz: 4/4mil
    6 Min Width /Clearance 1oz: 5/5mil      1oz: 5/5mil
    2oz: 5/7mil      2oz: 5/7mil
    7 Min Hole Ring Inner: 0.5oz: 4mil     Outer: 1/3oz-0.5oz: 4mil
    1oz: 5/5mil      1oz: 5/5mil
    2oz: 5/7mil      2oz: 5/7mil
    8 Copper Thickness 1/3oz – 2oz
    9 Max / Min Insulation Thickness 2mil/0.5mil (50μm/12.7μm)
    10 Min Hole Size and Tolerance Min hole: 8mil
    Tolerance: PTH±3mil, NPTH±2mil
    11 Min Slot 24mil x 35mil (0.6×0.9mm)
    12 Solder Mask Alignment Tolerance ±3mil
    13 Silkscreen Alignment Tolerance ±6mil
    14 Silkscreen Line Width 5mil
    15 Gold Plating Nickel: 100μ” – 200μ”  Gold: 1μ”-5μ”
    16 Immersion Nickel / Gold Nickel: 100μ” – 200μ”  Gold: 1μ”-5μ”
    17 Nickel: 100μ” – 200μ”  Gold: 1μ”-5μ” Silver: 6μ” – 12μ
    18 OSP Film: 8μ” – 20μ”
    19 Test Voltage Testing Fixture: 50-300V
    20 Profile Tolerance of Punch Accurate mould: ±2mil
    Ordinary mould: ±4mil
    Knife mould: ±8mil
    Hand-Cut: ±15mil

    2.Delivery time:
    Flexible pcb:5-7 working days,
    Rigid-flex pcb:8-15 working days.

    3.Package:Inner vacuum packing,Outer standard carton box packing.

    4.Shipping:
    A:By DHL,UPS,Fedex,TNT etc.
    B:By sea for mass quantity according to customer’s requirement.

    5.If need quotation for your PCB projects,pls provide following info:
    A:Quote quantity,
    B:Gerber file in 274-x format,
    C:Technical requirement or parameters(material,layer,copper thickness,
    board thickness,surface finishing,solder mask/silkscreen color…)

    Pls contact us freely to send inquiry,thanks for your support in advance!
