14 Layers Blind And Buried Vias PCB Circuit Board Suppliers


  • Brand Name: KingSong/Customized
  • Min.Order Quantity: No
  • Supply Ability: 30~50 thousand ㎡/Month
  • Port: Shenzhen
  • Service: EMS/OEM/ODM
  • Payment Terms: T/T,Paypal,WU etc.
  • Layer: 14
  • Base Material: FR4
  • Copper Thickness: 1oz
  • Board Thickness: 1.6mm
  • Solder Mask Color: Green(can customized)
  • Silkscreen Color: White(can customized)
  • Surface Finishing: Immersion Gold
  • Application Industry: Industrial Control
  • Application Products: Equipment Mainboard
  • Outer Line width/space: 4/5mil
  • Inner Line width/space: 4/3.5mil
  • Min.Hole Size: 0.2mm
  • Special Process: Blind and buried holes
  • Test Way: 100% E-Test
  • Standard: IPC-Class2/Class 3
  • Send Inquiry

    Describe

    Welcome to KingSong PCB Technology

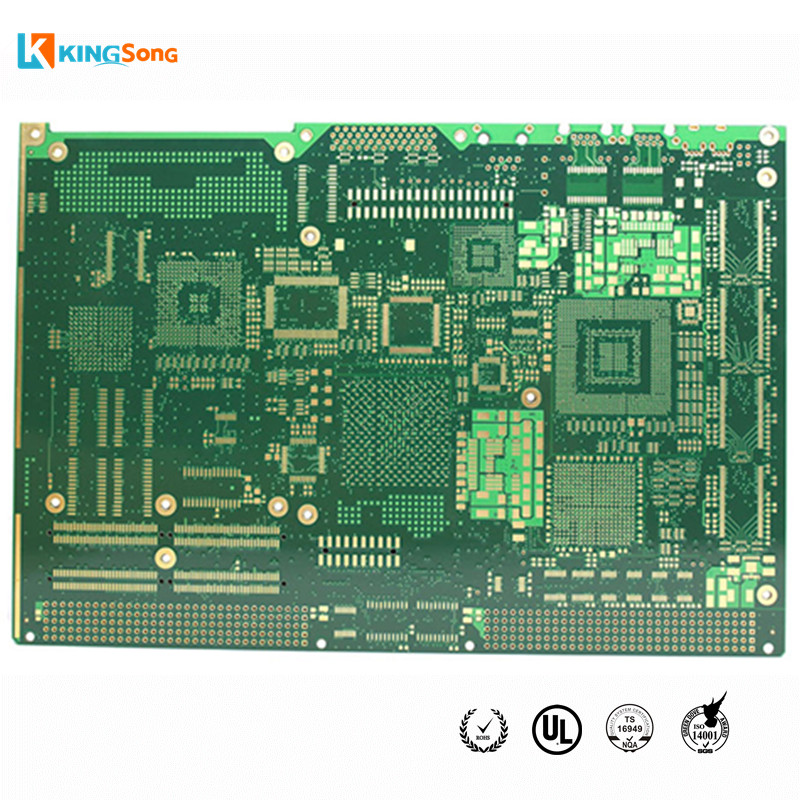

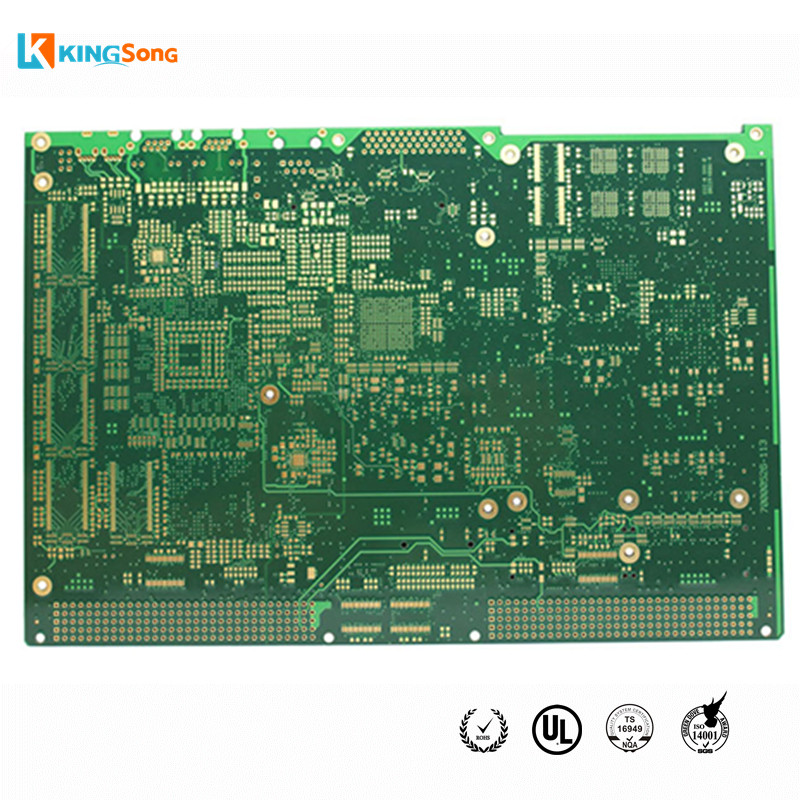

    Image:14 Layers Blind And Buried Vias PCB Circuit Board Suppliers

    Multilayer Custom PCB Boards Suppliers

    14 Layers PCB Manufacturing

    This Printed Circuit Board is a 14 Layers Blind And Buried Vias PCB Circuit Board Suppliers,used in Industrial Control,some like Equipment Mainboard,A PCB Circuit Board with Immersion Gold Surface Finishing is a coating between a component and a bare pcb circuit board,our professional PCB Manufacturer are not only offer 14 layers pcb board,but also 12 layer pcb, 16 layer pcb or 18 layer pcb etc.

    1.Detail PCB Manufacturing Capabilities:

    No. Item Mass Production Prototype
    1 Layers 1-8 Layers 1-20 Layers
    2 Max. Panel Size 600*770mm( 23.62″*30.31″) 600*770mm(23.62″*30.31″) 500*1200mm(19.69″*47.24″)
    3 Max.Board Thickness 8.5mm 8.5mm
    4 Min. Board Thickness 2L:0.3mm,
    4L:0.4mm,
    6L:0.8mm
    2L:0.2mm,
    4L:0.4mm.
    6L:0.6mm
    5 Min Inner Layer Clearance 0.1mm(4mil) 0.1mm(4mil)
    6 Min Line width 0.075mm(3/3 mil) 0.075mm(3/3 mil)
    7 Min Line space 0.075mm(3/3 mil) 0.075mm(3/3 mil)
    8 Min.Hole Size 0.15mm(6mil) 0.15mm(6mil)
    9 Min plated hole thickness 20um(0.8mil) 20um(0.8mil)
    10 Min Blind/Buried hole size 0.1mm(4mil) 0.1mm(1-8layers)(4mil)
    11 PTH Dia. Tolerance ±0.076mm(±3mil) ±0.076mm(±3mil)
    12 Non PTH Dia. Tolerance ±0.05mm(±2mil) ±0.05mm(±2mil)
    13 Hole Position Deviation ±0.05mm(±2mil) ±0.05mm(±2mil)
    14 Heavy Coppe 4oz/140μm 6oz/175μm
    15 Min S/M Pitch 0.1mm (4mil) 0.1mm (4mil)
    16 Soldermask colour Green,black,Blue,White,Yellow,Red Green,black,Blue,White,Yellow,Red
    17 Silkscreen colour White,Yellow,Red,Black White,Yellow,Red,Black
    18 Outline Routing,V-Groove, Beveling punch Routing,V-Groove, Beveling punch
    19 Outline Tolerance ±0.15mm ±6mil ±0.15mm (±6mil)
    20 Peelable mask Top,bottom,double sided Top,bottom,double sided
    21 Controlled Impedance +/- 10% +/- 7%
    22 Insulation Resistance 1×1012Ω(Normal) 1×1012Ω(Normal)
    23 Through Hole Resistance <300Ω(Normal) <300Ω(Normal)
    24 Thermal Shock 3×10sec@288℃ 3×10sec@288℃
    25 Warp and Twist ≤0.7% ≤0.7%
    26 Electric Strength >1.3KV/mm >1.4KV/mm
    27 Peel Strength 1.4N/mm 1.4N/mm
    28 Solder Mask Abrasion >6H >6H
    29 Flammability 94V-0 94V-0
    30 Test Voltage 50-330V 50-330V

    2.PCB lead time:(if you need urgent service,we also can meet)

    Description Double Layer 4 Layer 6 Layer 8 Layer 10 Layer or above
    Sample(WD) 4 7 8 10 12
    Mass production(WD) 7-9 10-12 13-15 16 20

    3.Package:Inner vacuum packing,Outer standard carton box packing.

    4.Shipping:
    A:By DHL,UPS,Fedex,TNT etc.
    B:By sea for mass quantity according to customer’s requirement.

    5.If need quotation for your PCB projects,pls provide following info:
    A:Quote quantity,
    B:Gerber file in 274-x format,
    C:Technical requirement or parameters(material,layer,copper thickness,
    board thickness,surface finishing,solder mask/silkscreen color…)

    If any inquiry or want to learn more,please send email to us freely or chat by online system,thanks for your support in advance!
