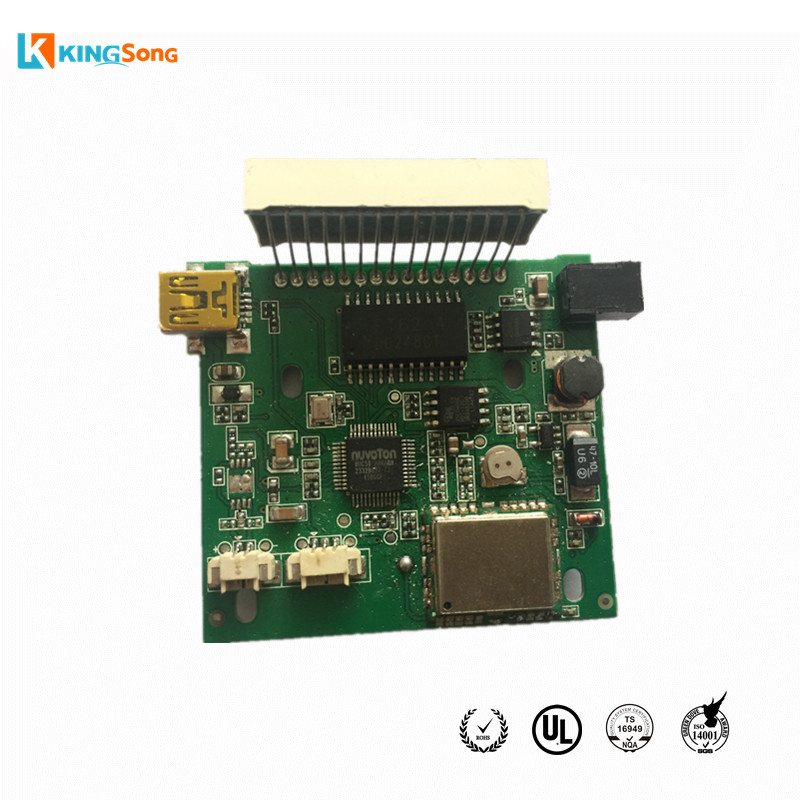

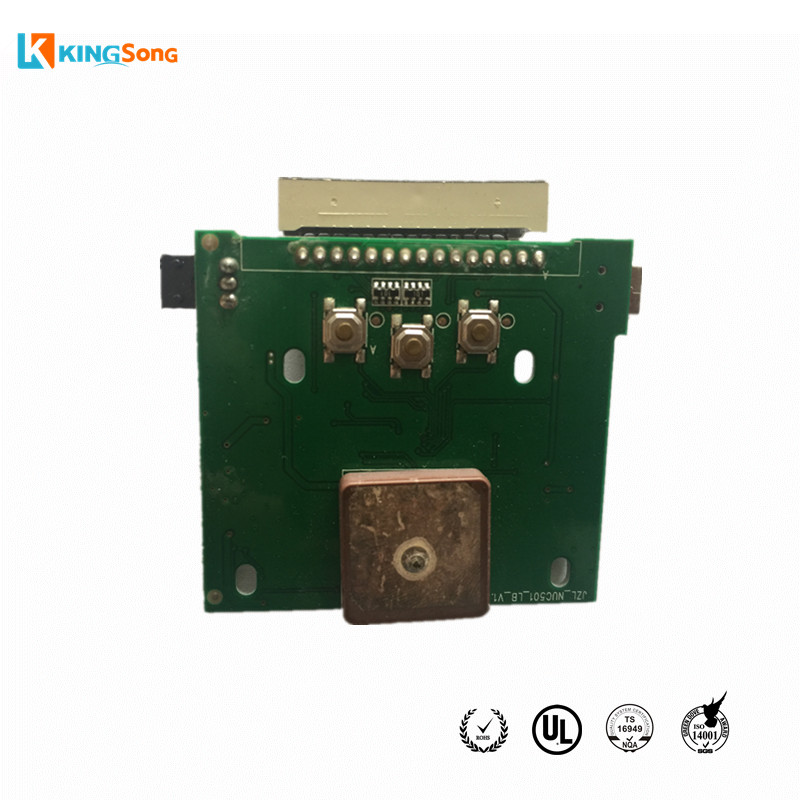

Buga Board Majalisar


  • Brand Name: KingSong / Musamman
  • Min.Order Quantity: Babu
  • Supply Ability: 30 ~ 50 dubu ㎡ / Watan
  • Port: Shenzhen
  • Service: EMS / OEM / ODM
  • Biya Terms: T / T, Paypal, Wu da dai sauransu
  • Layer: 2
  • Base abu: FR4
  • Copper kauri: 1oz
  • Board kauri: 1.6mm: 1.0mm
  • Solder mask launi: Green (iya musamman)
  • Bangaren lakabtawa launi: White (iya musamman)
  • Surface karewa: HASL-Gubar Free
  • Service type: Full taru sabis
  • Application: Car na'urorin haɗi
  • Test: E-gwajin, AOI, X-ray, Aiki gwajin
  • Majalisar Tech: tsoma kuma Wave soldering, SMT da Reflow soldering
  • bayyana

    Barka da zuwa  KingSong PCB Technology .


    Buga Board Majalisar

    Shafi Services, kamar: buga kewaye hukumar Majalisar Kamfanoni, buga kewaye hukumar Majalisar Tsari, buga kewaye hukumar Kuma Majalisar da dai sauransu

    1. Detail PCB Majalisar karfin:

    babu Item Capacity
    1 Single da biyu gefe SMT / PTH Eh
    2 Manyan sassa a garesu, BGA a garesu Eh
    3 Karami kwakwalwan kwamfuta size 0201
    4 Min BGA kuma Micro BGA farar da ball kirga 0,008 a. (0.2mm) farar wutã ne, ball ƙidaya mafi girma daga 1000
    5 Min Leaded sassa kafa 0,008 a. (0.2 mm)
    6 Max sassa size taro da na'ura 2.2 a. X 2.2 a. X 0.6 a.
    7 Majalisar surface Dutsen haši Eh
    8 M form sassa:
    LED
    Resistor da capacitor networks
    Electrolytic capacitors
    m resistors da capacitors (tukwane)
    Farms
    Eh, Majalisar ta hannuwa
    9 kalaman soldering Eh
    10 Max PCB size 14.5 a. X 19,5 a.
    11 Min PCB kauri 0.02 a.
    12 Fiducial Marks Fĩfĩta amma ba a bukatar
    13 PCB Gama: 1. SMOBC / HASL
    2.Electrolytic zinariya
    3.Electroless zinariya
    4.Electroless azurfa
    5.Immersion zinariya
    6.Immersion tin
    7.OSP
    14 PCB Shape Duk wani
    15 Panelized PCB 1.Tab karya
    2.Breakaway shafuka
    3.V-zura
    4.Routed + V-zira
    16 dubawa 1.AOI
    2.x-ray analysis
    3.Microscope zuwa 20X
    4.Function gwajin
    17 Rework 1.BGA kau da maye tashar
    2.SMT IR rework tashar
    3.Thru-rami rework tashar

    2.Delivery lokaci:
    PCB Majalisar samfur (Samfurin): 7-10 aiki kwanaki,
    Mass PCB Majalisar Production: 15-20 aiki kwanaki.

    3.Package: Inner injin shiryawa ko anti-canzawa jakar, matsanancin misali kartani akwatin shiryawa.

    4.Shipping:
    A: By DHL, UPS, Fedex, TNT da dai sauransu
    B: By tẽku sabõda taro yawa bisa ga abokin ciniki ta bukata.

    5.If bukatar zance for your PCB Majalisar ayyukan, don Allah samar da wadannan info:
    A: Quote yawa,
    B: Gerber fayil a 274-x format, kuma Bom List
    C: fasaha da ake bukata, ko kuma sigogi (abu, Layer, jan kauri,
    kwamitin kauri, surface karewa, solder mask / silkscreen launi ...)

    Don Allah tuntube mu da yardar kaina aika bincike, godiya ga goyon baya a gaba!
